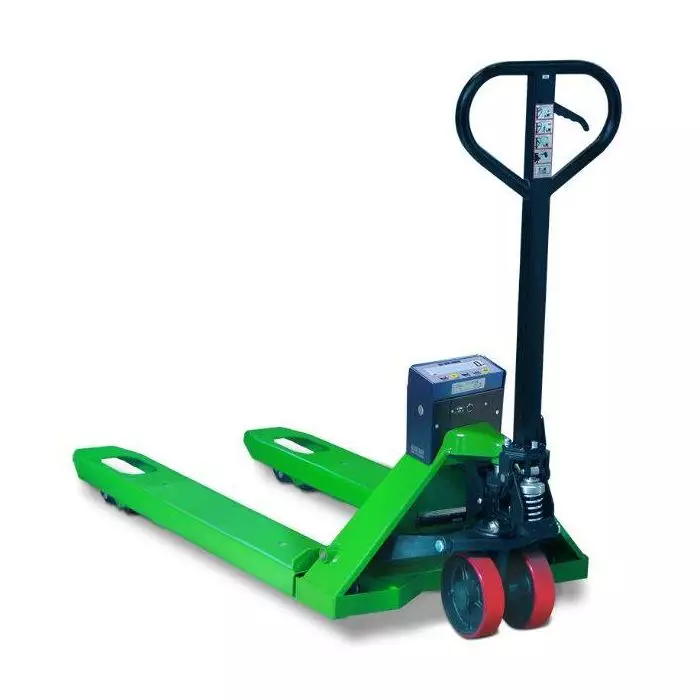

NETWORK ENTRY LEVEL PALLET TRUCK SCALE

• Maximum lifting capacity: 2,000 kg
• Resolution: > 0,2 kg (LTTPWNAA, LTTPWNBT version), > 1 kg (LTTPWNBTW version with wide forks)
• Accuracy (weighing of goods on Euro pallets with distributed load): +/- 1 kg

• The only entry level pallet truck scale that weighs with a resolution of 0.2 kg (1 kg in the wide forks version).
• It is the lightest on the market, while maintaining a robust and rigid structure to weigh accurately.
• The wide forks version is ideal for use in the fruit and vegetable sector.
• The only one without junction box, with adjustment of each load cell from the display.
• 4 Dini Argeo approved steel load cells, with IP67 protection rating.
• The large 25 mm shockproof LCD display makes it easier to read.
• Backlighting with automatic switch-off, adjustable from the keyboard to adapt to any working conditions.
• Waterproof keyboard for industrial use. Protective cover as standard, for protection against water splashes.
• Power supply via internal rechargeable battery with 80h autonomy or AA batteries with 40h autonomy for use on trucks.
• Programmable automatic switch-off, which extends the working autonomy.
• Each pallet truck is tested and supplied with the corresponding certificate to guarantee the declared accuracy.

• Low profile forks, only 85 mm.
• Fork dimensions: - standard 1150 x 550 x 85 mm (LTTPWNAA, LTTPWNBT version), - wide 1240 x 680 x 85 mm (LTTPWNBTW version)
• Lifting height 200 mm.
• Weight 105 kg approx (without packaging).
• Steel structure, oven-fire painted.
• Protection rating IP40 (IP54 with standard protective cover).
• Steering wheels and loading rollers in poliurethane.
• 5-key waterproof keyboard.
• Quick-lift hydraulic pump allowing controlled lowering of the forks.
• Battery charger with EU plug included (charging time approx. 8 hours). Optional UK, AU, US plug (for TPWNBT and TPWNBTW versions).
• Temperature range: -10° /+40°

• The only one without junction box: the adjustment of each individual cell is done comfortably from the keyboard.
• Spare and wear parts always available and ready for delivery.
• Service centres throughout Europe and the world.

• Weighing functions: Zeroing, Tare, Preset Tare.
• Operating modes selectable directly by the user, via dedicated button:
