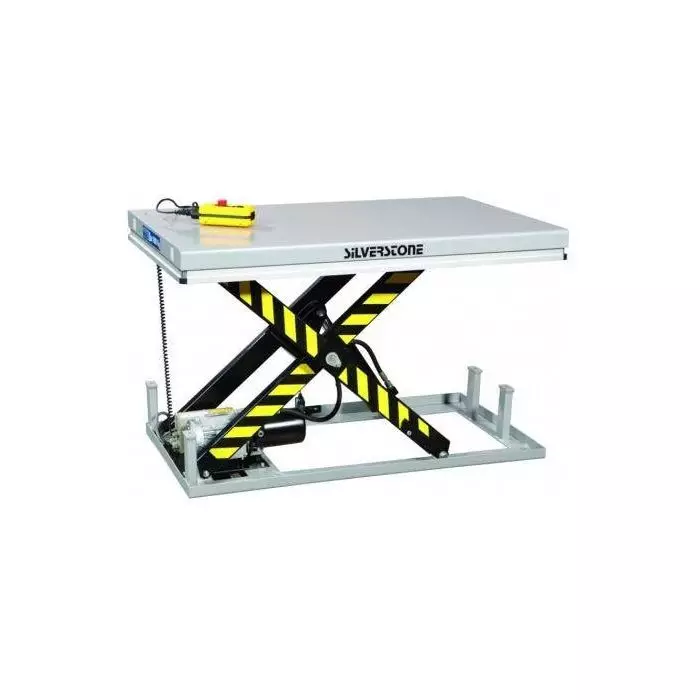

SINGLE PHASE 1000KG STATIC LIFT TABLE - HW1001-220
Low-noise power pack equipped with built-in overload valve and flow compensated valve for controlled lowering speed.
The upper platform has a safety frame that covers all four sides. There are double switches for lowering safety of the platform.
Mechanic stop enables safe maintenance.
SINGLE PHASE 1000KG STATIC LIFT TABLE
Maintenance free pivot bushings. Large safety clearance between the scissors to avoid injuries. Lift cylinder with internal drainage. Safety valve to ensure safety in case of a hose burst. Moveable limit switch for adjusting full raised stop. 4 end-stops, incl. 4 loops which can be used e.g. when lifting total lift table into a pit. Low-noise power pack with built-in overload valve. Approves to EN1570-1.
- - Capacity 1000kg
- - Table area 1300x820
- - 1-Phase (230V)
Specification
| CAPACITY (KG) |
TABLE AREA L X W (MM) |
BASE FRAME SIZE L X W (MM) |
STROKE LENGTH (MM) |
WEIGHT (KG) | LIFT HEIGHT (MM) | LIFTING SPEED TO MAX. HEIGHT (S) |
| 1000 | 1300 X 820 | 1255 X 680 | 785 | 160 | 205-990 | 10-15 |
Call freephone 0800 458 8025 to find out more information.
| Shipping For Product | 0.000000 |
|---|---|
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
-
SINGLE SCISSOR STATIC TABLES - HW RANGE£2,317.00
