LOW PROFILE STATIC TABLES - SL/SU RANGE
Liftruck's Low Profile Static Tables in the SL/SU range offer electro-hydraulic lift tables ideal for installations without pits, featuring a lowered height of just 85mm. These tables, with capacities from 1000kg to 1500kg, are designed for reliability with solid steel construction and include a separate hydraulic power pack. With lifting heights from 860mm to 870mm, they are perfect for industrial settings. They meet EN1570-1 and ANSI/ASME standards, ensuring safety and durability. Explore more options for efficient material handling at Liftruck UK.
Low Profile Static Tables - SL/SU Range
Product Overview

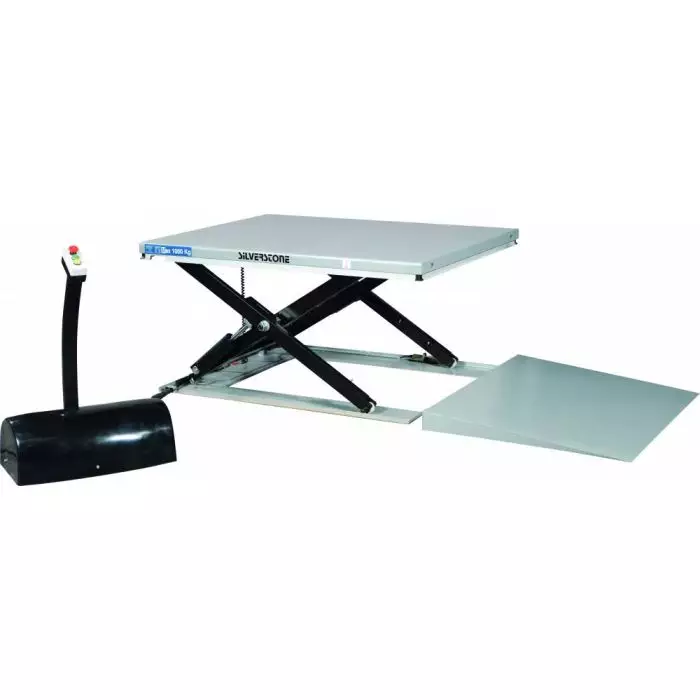

The Low Profile Static Tables in the SL/SU Range are electro-hydraulic lift tables designed for installations without the need for a pit. With a minimal lowered height of just 85 mm, these tables facilitate easy loading and unloading of materials, enhancing efficiency in industrial settings. Built with solid steel plates, they offer exceptional strength and reliability, making them ideal for various material handling applications.
Key Features
- Low Profile Design: Allows for installation without a pit, with a lowered height of only 85 mm.
- Solid Steel Construction: Ensures high strength and durability for demanding industrial use.
- Separate Hydraulic Power Pack: Positioned next to the lift table, rated at IP54 for protection against dust and water.
- Moveable Ramp Included: Facilitates easy loading and unloading of materials.
- Three-Phase Connection: Equipped with a cable for 380V/16A connection.
- Compliance: Meets EN1570-1 and ANSI/ASME standards for safety and quality.
Specifications
| Model | Type | Capacity (kg) | Stroke Length (mm) | Table Area (L x W mm) | Base Frame Size (L x W mm) | Weight (kg) | Lifting Time to Max Height (s) | Lift Motor (kW) | Lifting Height (mm) |
| SL1001 | Low Profile | 1,000 | 775 | 1,450 x 1,140 | 1,076 x 1,330 | 357 | 18 | 1.1 | 85–860 |
| SL1003 | Low Profile | 1,000 | 775 | 1,450 x 800 | 1,736 x 1,330 | 357 | 15 | 1.1 | 85–860 |
| SL1502 | Low Profile | 1,500 | 775 | 1,600 x 1,000 | 1,430 x 936 | 401 | 20 | 1.5 | 105–870 |
| SU1001 | U-Shaped | 1,000 | 775 | 1,450 x 1,140 | 1,076 x 1,330 | 280 | 15 | 1.1 | 85–860 |
| SU1500 | U-Shaped | 1,500 | 755 | 1,600 x 1,200 | 1,430 x 1,136 | 380 | 20 | 1.5 | 105–860 |
Applications
- Manufacturing: Ideal for assembly lines requiring efficient material handling at ergonomic heights.
- Warehousing: Facilitates the loading and unloading of goods without the need for pit installations.
- Packaging: Enhances productivity in packaging operations by providing adjustable work surfaces.
- Logistics: Assists in the efficient transfer of goods in distribution centers and logistics hubs.
Related Products
- Low Profile Scissor Lifts - LTLP Range: Designed for direct loading without pit installation, compatible with standard pallets.
- Single Scissor Static Tables - HW Range: Durable lifting solutions with capacities from 1,000 kg to 4,000 kg, suitable for various industrial applications.
- Basic Static Tables - HWY Range: Reliable lifting solutions with capacities from 500 kg to 3,000 kg.
Order Now
Enhance your material handling operations with the Low Profile Static Tables - SL/SU Range. Order today and benefit from free delivery to UK mainland (excluding Highlands & Northern Ireland).
Frequently Asked Questions
General Product Information
-
What are Low Profile Static Tables?
- Low Profile Static Tables are electro-hydraulic lift platforms designed for installations without pits, featuring a lowered height of just 85mm. They are built with solid steel plates for strength and reliability, making them ideal for industrial settings.
-
What are the key features of these tables?
- Low Profile Design: Allows for easy loading and unloading without the need for a pit.
- Solid Steel Construction: Ensures durability and long service life.
- Separate Hydraulic Power Pack: Positioned next to the lift table for efficient operation.
- Moveable Ramp Included: Facilitates easy loading and unloading.
- Electrical Specifications: Comes with a cable for 3-phase connection (380V/16 Ah).
- Compliance: Meets EN1570-1 and ANSI/ASME standards.
-
What are the available models and their specifications?
- SL1001:
- Capacity: 1,000 kg
- Stroke Length: 775 mm
- Table Area: 1450 x 1140 mm
- Base Frame Size: 1076 x 1330 mm
- Weight: 357 kg
- Lifting Time to Max Height: 18 seconds
- Lift Motor: 1.1 kW
- Lifting Height: 85-860 mm
- SL1003:
- Capacity: 1,000 kg
- Stroke Length: 775 mm
- Table Area: 1450 x 800 mm
- Base Frame Size: 1736 x 1330 mm
- Weight: 357 kg
- Lifting Time to Max Height: 15 seconds
- Lift Motor: 1.1 kW
- Lifting Height: 85-860 mm
- SL1502:
- Capacity: 1,500 kg
- Stroke Length: 775 mm
- Table Area: 1600 x 1000 mm
- Base Frame Size: 1430 x 936 mm
- Weight: 401 kg
- Lifting Time to Max Height: 20 seconds
- Lift Motor: 1.5 kW
- Lifting Height: 105-870 mm
- SU1001:
- Capacity: 1,000 kg
- Stroke Length: 775 mm
- Table Area: 1450 x 1140 mm
- Base Frame Size: 1076 x 1330 mm
- Weight: 280 kg
- Lifting Time to Max Height: 15 seconds
- Lift Motor: 1.1 kW
- Lifting Height: 85-860 mm
- SU1500:
- Capacity: 1,500 kg
- Stroke Length: 755 mm
- Table Area: 1600 x 1200 mm
- Base Frame Size: 1430 x 1136 mm
- Weight: 380 kg
- Lifting Time to Max Height: 20 seconds
- Lift Motor: 1.5 kW
- Lifting Height: 105-860 mm
- SL1001:
Usage and Operation
-
How is the table operated?
- The table is operated using a control panel that allows for precise lifting and lowering of the platform to the desired height.
-
Is the table suitable for outdoor use?
- These tables are designed for indoor use. For outdoor applications, it's advisable to consult with the manufacturer to ensure suitability.
Maintenance and Care
- What maintenance is required for the table?
- Regular maintenance includes checking the hydraulic system for leaks, ensuring the safety valve is functioning correctly, and inspecting the power pack for any signs of wear.
Purchasing and Delivery
-
What is the price of the table?
- Prices vary depending on the model.
-
What is the delivery time for the table?
- Delivery times are typically 2-3 weeks, depending on your location.
Safety and Regulations
-
Is the table compliant with safety standards?
- Yes, the table is CE marked and supplied with a Certificate of Conformity to meet Health & Safety Regulations.
-
Are safety guidelines included with the table?
- Yes, the table comes with safety guidelines to ensure safe operation within warehouse environments.
