5012E Series

  • High torque 1½ hp gear reduction motor
  • Hardened aircraft 19mm drive screw
  • Overload circuit breaker protection system
  • Anti-skid toe plate surface protection pads
  • Full one year warranty on equipment - three years on motor
  • All-weather, marine safety switches
  • Grommeted wiring system
  • 200mm roller bearing, non-marking wheels
  • Fully automatic, electro-magnetic braking system

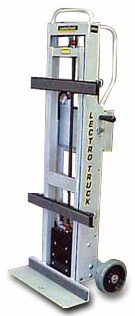

lectrotruck 5012E electric stair climbing truck



Model Specifications
Material Aluminum Toe Plate 150 x 600mm
Battery 12V Portable Power Pack Brake Electric
Height 1727mm Leverage/Hook Bar Accessory
Rating 550kg Tri-Pod N/A
Lift Height 838mm Extension Handles Standard
Strap Bar (2) Adjustable Weight 59kg
