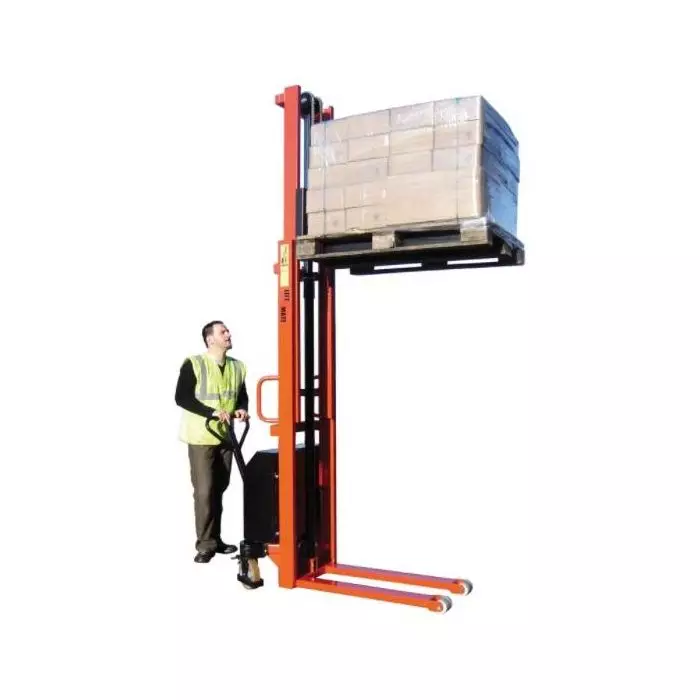

ELECTRIC LIFT STACKER 1000KG - LTVVE1000 RANGE
ELECTRIC LIFT STACKER 1000KG
The ELECTRIC LIFT STACKER 1000KG - LTVVE1000 RANGE are designed to lift euro pallets up to various heights. Depending on the model you can lift to 1120, 1600, 2000, 2500, 3000, 3500 or even 3700mm. Special versions with heights of 4m or more can be made and fitted with additional stabilisors.
These stackers are very robust, well manufactured and come with a full warranty and service back up.
The LTVVE1000 range is available in a variety of different configurations including wide straddle legs, adjustable forks and duplex masts. Special attachments and versions can be made to your requirements.
If you require more information about our range of electric pallet lifters or need help to pick the right lifter, please call us.
| Model (LTVVE1000/-) | 1120 | 1600 | 2000 | 2500 | 3000 | 3500 | 3700 |
| Capacity | 1000kg | ||||||
| Load Centre | 600 mm | ||||||
| Max. Lift Height | 1120mm | 1600mm | 2000mm | 2500mm | 3000mm | 3500mm | 3700mm |
| Lowered Fork Height | 85 mm | ||||||
| Fork Length | 1150 mm | ||||||
| Width over Forks | 545 mm | ||||||
| Overall Length | 1785 mm | ||||||
| Overall width | 665mm | 665mm | 775mm | 775mm | 775mm | 775mm | 775mm |
| Overall Closed Height | 1585mm | 1970mm | 1470mm | 1720mm | 1970mm | 2220mm | 2320mm |
| Wheels | ø 200 Polyurethane / ø 80 mm Nylon | ||||||
| Approx. Weight | 285kg | 310kg | 390kg | 420kg | 450kg | 480kg | 500kg |
Call freephone 0800 458 8025 to find out more information.
LIFT STACKER SERVICING
If you require any servicing please give us a call on 0800 458 8025.
