ELECTRIC HYDRAULIC STACKER - LTKIE400/1500A

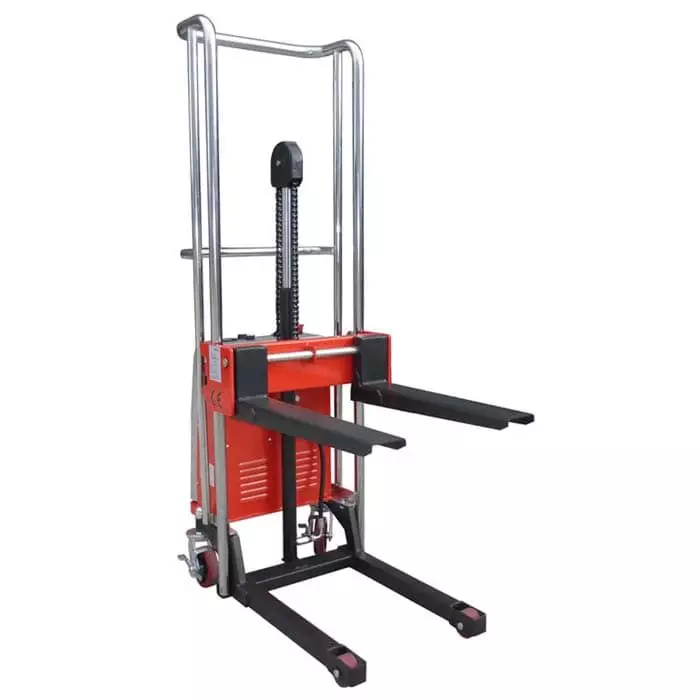

Electric Hydraulic Stacker - LTKIE400/1500A
Product Overview
The Electric Hydraulic Stacker - LTKIE400/1500A is a medium-sized, electrically operated stacker designed for efficient handling of small pallets and boxes up to 400 kg. Its adjustable forks and optional removable platform enhance versatility, making it suitable for various material handling tasks in warehouses and industrial settings.
Key Features
- Load Capacity: Handles loads up to 400 kg, suitable for small pallets and boxes.
- Electric Lift Operation: Facilitates easy and fast lifting with a high-quality hydraulic motor.
- Adjustable Forks: Fork width adjustable between 215 mm and 530 mm to accommodate different pallet sizes.
- Optional Removable Platform: Allows handling of boxes, sacks, and other items beyond standard pallets.
- Service-Free Battery: Equipped with a 12V / 60Ah maintenance-free battery for reliable performance.
- Compact Design: Overall length of 1,070 mm and width of 595 mm, suitable for maneuvering in confined spaces.
- Polyurethane Wheels: Ensures smooth and durable operation with front wheel diameter of 75 mm and rear wheel diameter of 125 mm.
Specifications
- Model: LTKIE400/1500A
- Maximum Lift Height: 1,500 mm
- Fork Length: 600 mm
- Width Over Forks: Adjustable from 215 mm to 530 mm
- Overall Length: 1,070 mm
- Overall Width: 595 mm
- Overall Closed Height: 1,725 mm
- Lowered Fork Height: 85 mm
- Battery: 12V / 60Ah
- Wheels: Polyurethane, front diameter 75 mm, rear diameter 125 mm
- Approximate Weight: 126 kg
Applications
- Warehousing: Ideal for stacking and unstacking small pallets in storage areas.
- Manufacturing: Assists in transporting materials between production lines.
- Retail: Suitable for moving merchandise in stockrooms and on the shop floor.
- Logistics: Facilitates the loading and unloading of delivery vehicles.
Related Products
- Manual Pallet Stacker with Adjustable Forks - LTKI500/1600A: Features adjustable forks and a 500 kg capacity, suitable for handling various open-bottom pallets.
- Pramac Manual Stacker Wrap-Over - MX1016: Equipped with reinforced forks and a foot pedal for lifting, suitable for various pallet handling tasks.
- Straddle Pallet Stackers - LTKISA Range: Designed for handling closed-bottom pallets like UK standard blue pallets, with adjustable straddle legs for enhanced stability.
Order Now
Enhance your material handling efficiency with the Electric Hydraulic Stacker - LTKIE400/1500A. Order today to experience reliable and versatile pallet handling in your operations.
Frequently Asked Questions
General Product Information
1. What is the maximum lifting capacity of the Electric Hydraulic Stacker LTKIE400/1500A?
The LTKIE400/1500A Electric Hydraulic Stacker has a maximum lifting capacity of 400 kg, making it suitable for handling small pallets and boxes.
2. What are the dimensions of the stacker?
- Fork Length: 600 mm
- Width Over Forks: Adjustable between 215 mm and 530 mm
- Overall Length: 1,070 mm
- Overall Width: 595 mm
- Overall Closed Height: 1,725 mm
- Lowered Fork Height: 85 mm
3. What type of wheels does the stacker have?
The stacker is equipped with polyurethane wheels, with diameters of 75 mm for the front wheels and 125 mm for the rear wheels, ensuring smooth and durable operation.
4. What safety features are included with the stacker?
The stacker features a high-quality hydraulic motor, a service-free battery, and an optional removable platform for handling boxes and sacks.
Usage and Operation
5. How is the stacker operated?
The stacker offers easy and fast lifting operations, with electric lifting and lowering functions, providing flexibility in operation.
6. Is the stacker suitable for handling euro pallets?
Yes, the stacker is designed to handle small pallets up to 400 kg, making it suitable for euro pallets and other small-sized pallets.
Maintenance and Care
7. What maintenance is required for the stacker?
Regular maintenance includes checking the hydraulic system for leaks, ensuring the battery is charged, and inspecting wheels for wear and tear.
Purchasing and Delivery
8. What is the delivery time for the stacker?
Delivery times are typically 2-3 business days, depending on your location.
9. Are there any optional accessories available?
Yes, an optional removable platform is available for an additional £65.00.
Safety and Regulations
10. Is the stacker compliant with safety standards?
Yes, the stacker is designed with safety features to ensure safe operation within warehouse environments.
11. Are safety guidelines included with the stacker?
Yes, the stacker comes with safety guidelines and is designed to ensure safe operation within warehouse environments.
