INDIVIDUAL SKATES - LTSF RANGE
INDIVIDUAL SKATES
INDIVIDUAL SKATES - LTSF RANGE

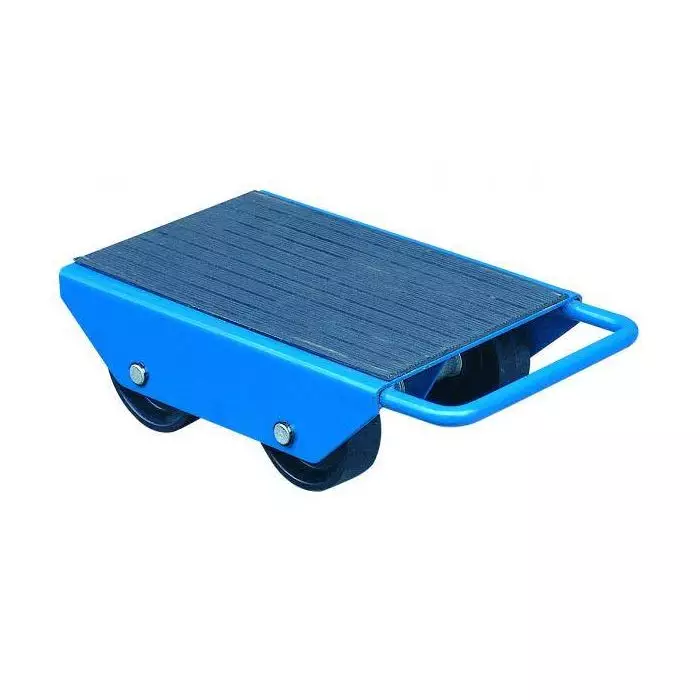

Shifting Industrial Skates are designed for moving heavy objects, such as factory machinery, power generators, large steel constructions etc. The load can be raised using a a jack (hydraulic or ratchet). Some lighter loads can be lifted with a crowbar. Our skates are maintenance free with sealed bearings. The industrial skates are fitted with handles for ease of carrying and positioning. The skate platforms have rubber surfaces for protection and stability of load.
- - Individual shifting skates are designed for moving heavy objects
- - Ideal for moving factory machinery, power generators, large steel constructions etc
- - Loads can be raised using either a roller crowbar or a hydraulic jack
- - Maintenance free with sealed bearings
- - Fitted with anti-slip rubber mat for stability and protection of loads
Specification
MODEL | CAPACITY (KG) | NO. OF ROLLERS | DIMENSIONS L X W X H (MM) | WEIGHT (KG) |
LTSF10 | 1000 | 4 | 330 X 220 X 120 | 7 |
LTSF20 | 2000 | 8 | 330 X 220 X 120 | 8 |
LTSF25 | 2500 | 2 | 210 X 120 X 105 | 4 |
LTSF30 | 3000 | 4 | 330 X 300 X 120 | 9.5 |
LTSF60 | 6000 | 6 | 260 X 230 X 105 | 12 |
Call 0800 458 8025 to order or find out more information.
Frequently Asked Questions
General Product Information
-
What are Individual Skates from the LTSF range?
- Individual Skates from the LTSF range are heavy-duty equipment designed for moving heavy objects, such as factory machinery, power generators, and large steel constructions. They are equipped with sealed bearings for maintenance-free operation and feature rubber surfaces for load protection and stability.
-
What are the key features of these skates?
- Heavy-Duty Design: Built to handle substantial loads, making them suitable for industrial applications.
- Maintenance-Free Operation: Sealed bearings eliminate the need for regular maintenance.
- Rubber Surface: Provides stability and protects the load during movement.
- Handles for Easy Handling: Facilitates easy carrying and positioning of the skates.
-
What models are available?
- LTSF10: Capacity of 1,000 kg, featuring 4 rollers, dimensions of 330 x 220 x 120 mm, and weighing 7 kg.
- LTSF20: Capacity of 2,000 kg, featuring 8 rollers, dimensions of 330 x 220 x 120 mm, and weighing 8 kg.
- LTSF25: Capacity of 2,500 kg, featuring 2 rollers, dimensions of 210 x 120 x 105 mm, and weighing 4 kg.
- LTSF30: Capacity of 3,000 kg, featuring 4 rollers, dimensions of 330 x 300 x 120 mm, and weighing 9.5 kg.
- LTSF60: Capacity of 6,000 kg, featuring 6 rollers, dimensions of 260 x 230 x 105 mm, and weighing 12 kg.
Usage and Operation
-
How are these skates operated?
- The load can be raised using a roller crowbar or a hydraulic jack. Once elevated, the skates are positioned under the load to facilitate movement.
-
Can these skates be used on all types of floors?
- Yes, they are designed for use on firm, level floors. It's essential to ensure the floor can support the weight of the load and the equipment.
-
Are these skates easy to use?
- Yes, they are designed for ease of use, allowing operators to move heavy machinery with minimal effort.
Maintenance and Care
- What maintenance is required for these skates?
- These skates are maintenance-free due to their sealed bearings. Regularly inspect them for signs of wear or damage to ensure optimal performance.
Purchasing and Delivery
- What is the delivery time for these skates?
- Delivery times are typically 2-3 business days, depending on your location. For specific delivery estimates, please contact Liftruck UK directly.
Safety and Regulations
-
Are these skates compliant with safety standards?
- Yes, they are designed to meet industry safety standards, ensuring safe operation during use.
-
Are safety guidelines included with these skates?
- Yes, detailed safety guidelines are provided to ensure safe operation within your work environment. It is essential to follow these guidelines to maintain safety and efficiency.
