ADJUSTABLE SKATES PAIRS - LTCM RANGE
ADJUSTABLE SKATES PAIRS
ADJUSTABLE SKATES PAIRS - LTCM RANGE
Shifting Industrial Skates are designed for moving heavy objects, such as factory machinery, power generators, large steel constructions etc. The load can be raised using a a jack (hydraulic or ratchet). Some lighter loads can be lifted with a crowbar.
Our skates are maintenance free with sealed bearings.
The industrial skates are fitted with handles for ease of carrying and positioning. The skate platforms have rubber surfaces for protection and stability of load.

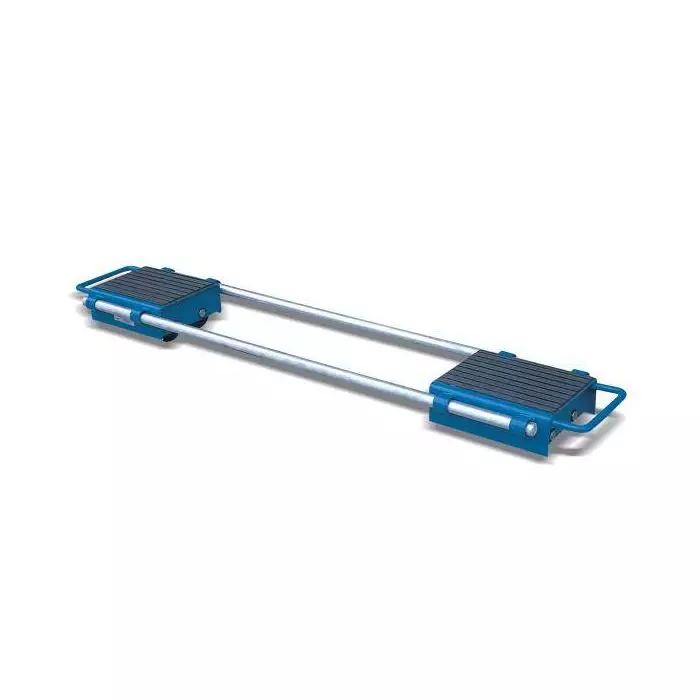

The skate pairs featured here are supplied together with linking bars to stop skates travelling at different speeds. The adjustable skate pairs are typically used with one or two steerable skates to form a triangular or rectangular skate set.
- - Adjustable Skates consist of a pair of Skates each. These can be linked using 2 steel rods
- - The rods are loose inside tubes welded onto the sides of the skates
- - The rods prevent the skates from skidding and travelling at different speeds
- - The distance between the skates can be freely adjusted from 500 to 1200MM (LTCM60)
- - The distance between the skates can be freely adjusted from 750 to 1200MM (LTCM120 & LTCM240)
- - The tops of the skates are covered with a rubber mqat for stability and protection of loads
Specification
| MODEL | CAPACITY (KG) | NO. OF ROLLERS | ROLLERS (MM) | DIMENSIONS L X W X H (MM) | WEIGHT (KG) |
| LTCM60 | 6000 | 8 | 85 X 90 NYLON | 300 X 250 X 115 | 30 |
| LTCM120 | 12000 | 12 | 85 X 90 NYLON | 360 X 220 X 115 | 38 |
| LTCM240 | 24000 | 16 | 83 X 85 STEEL | 360 X 220 X 115 | 65 |
Call 0800 458 8025 to order or find out more information.
| Shipping For Product | 0.000000 |
|---|---|
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
Frequently Asked Questions
General Product Information
-
What are Adjustable Skate Pairs?
- Adjustable Skate Pairs are essential components for moving heavy machinery and equipment. They consist of two skates connected by steel rods, allowing for adjustable spacing between them. This adjustability enables the creation of triangular or rectangular skate sets when combined with steerable skates, facilitating the movement of various load sizes.
-
What are the key features of Adjustable Skate Pairs?
- Adjustable Spacing: The distance between the skates can be freely adjusted to accommodate different load sizes.
- Durable Construction: Made from high-quality materials to withstand heavy-duty use.
- Rubber Surface: The tops of the skates are covered with a rubber mat for stability and protection of loads.
- Maintenance-Free: Equipped with sealed bearings, requiring minimal maintenance.
-
What models are available?
- LTCM60: Capacity of 6,000 kg, adjustable from 500 to 1,200 mm.
- LTCM120: Capacity of 12,000 kg, adjustable from 750 to 1,200 mm.
- LTCM240: Capacity of 24,000 kg, adjustable from 750 to 1,200 mm.
Usage and Operation
-
How are Adjustable Skate Pairs operated?
- Adjustable Skate Pairs are typically used with one or two steerable skates to form a triangular or rectangular skate set. The adjustable spacing allows for customization based on the load's dimensions, ensuring stability and ease of movement.
-
Can Adjustable Skate Pairs be used on all types of floors?
- Yes, they are suitable for use on firm, level floors. It's important to ensure the floor can support the weight of the load and the equipment.
-
Are Adjustable Skate Pairs easy to use?
- Yes, they are designed for ease of use, allowing operators to move heavy machinery with minimal effort.
Maintenance and Care
- What maintenance is required for Adjustable Skate Pairs?
- Regularly inspect the skates for signs of wear or damage. Ensure all components are securely fastened and that rollers move freely. Periodically lubricate moving parts to maintain optimal performance.
Purchasing and Delivery
-
What is the price of Adjustable Skate Pairs?
- The Adjustable Skate Pairs vary on the model.
-
What is the delivery time for Adjustable Skate Pairs?
- Delivery times are typically 2-3 business days, depending on your location. For specific delivery estimates, please contact Liftruck UK directly.
Safety and Regulations
-
Are Adjustable Skate Pairs compliant with safety standards?
- Yes, they are designed to meet industry safety standards, ensuring safe operation during use.
-
Are safety guidelines included with Adjustable Skate Pairs?
- Yes, detailed safety guidelines are provided to ensure safe operation within your work environment. It is essential to follow these guidelines to maintain safety and efficiency.
