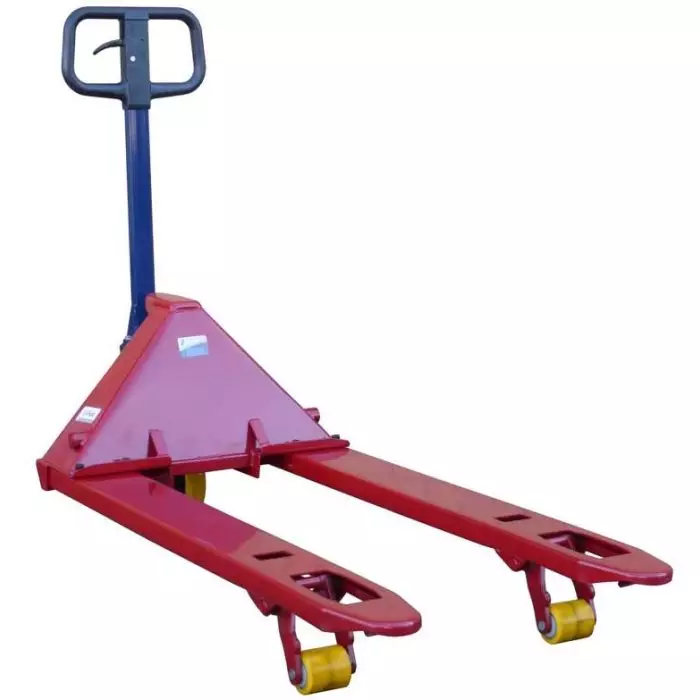

ADJUSTABLE PALLET TRUCKS - LTPTA RANGE
ADJUSTABLE PALLET TRUCKS
Move all your pallets with one pallet truck instead of two or even three! Ideal for applications where more then one type of pallet is used on site. This pallet truck is also great for special sized pallets as the forks can be fixed in any position in the width range. This adjustable pallet truck is exceptionally robust and reliable.
Available in three fork lengths and two fork width ranges.
The pallet truck comes supplied with polyurethane steer wheels and single polyurethane rollers as standard, but tandem (double) load wheels can be supplied also (see options above).
The 76mm lowered height makes this pallet truck a "semi-low profile" pallet truck. This allows it to fit into many special lower pallets, for example those coming from the US or the Far East. Also feel free to contact us if you wish to establish which exact size of pallet truck (adjustable or standard pallet truck) would best be suited to your application.
MODEL | DESCRIPTION | SIZE |
LTPTA22MS | Adjustable pallet truck | 2.2t, 400-520x910mm |
LTPTA22M | Adjustable pallet truck | 2.2t, 400-520x1060mm |
LTPTA22ML | Adjustable pallet truck | 2.2t, 400-520x1160mm |
LTPTA22LS | Adjustable pallet truck | 2.2t, 530-680x910mm |
LTPTA22LM | Adjustable pallet truck | 2.2t, 530-680x1060mm |
LTPTA22L | Adjustable pallet truck | 2.2t, 530-680X1160 |
NOTE: Fork width is adjusted manually. Adjusting the fork width takes approximately three minutes.
Type | GENERAL RANGE PALLET TRUCKS |
---|---|
Shipping For Product | 0.000000 |
Calculate Shipping | Per Product Quantity |
Enable Shipping Per Product | Yes |
Frequently Asked Questions
Product Specifications
1. What are the available fork dimensions for these adjustable pallet trucks?
The LTPTA range offers the following configurations:
Model | Capacity (kg) | Fork Length (mm) | Adjustable Width Range (mm) |
---|---|---|---|
LTPTA22MS | 2200 | 910 | 400–520 |
LTPTA22M | 2200 | 1060 | 400–520 |
LTPTA22ML | 2200 | 1160 | 400–520 |
LTPTA22LS | 2200 | 910 | 530–680 |
LTPTA22LM | 2200 | 1060 | 530–680 |
LTPTA22L | 2200 | 1160 | 530–680 |
These adjustable widths allow the pallet truck to accommodate various pallet sizes, making it versatile for different applications.
2. What is the lowered fork height of these pallet trucks?
The forks have a lowered height of 76mm, classifying them as "semi-low profile" pallet trucks. This feature enables compatibility with special lower pallets, such as those from the US or the Far East.
3. What materials are used in the construction of these pallet trucks?
The adjustable pallet trucks are constructed with a rugged all-steel frame, ensuring durability and reliability in various industrial settings.
4. What type of wheels do these pallet trucks have?
They come standard with polyurethane steer wheels and single polyurethane rollers. Tandem (double) load wheels are also available as an option.
Usage and Operation
5. How do I adjust the fork width on these pallet trucks?
The fork width is adjusted manually and can be set to any position within the specified range. Adjusting the fork width takes approximately three minutes.
6. Are these pallet trucks suitable for handling different pallet sizes?
Yes, the adjustable fork widths make them ideal for applications involving multiple pallet sizes, allowing you to move various pallets with a single pallet truck.
7. Can these pallet trucks handle lower profile pallets?
Yes, the semi-low profile design with a 76mm lowered fork height allows them to fit into many special lower pallets.
Maintenance and Care
8. How do I maintain the adjustable pallet truck?
Regular maintenance includes:
- Checking the hydraulic system for leaks.
- Lubricating moving parts.
- Inspecting wheels for wear and tear.
9. What is the warranty for this product?
These pallet trucks come with a 12-month warranty covering manufacturing defects.
10. Are replacement parts available?
Yes, replacement parts such as wheels and hydraulic components are available through our store.
Purchasing and Delivery
11. Do you offer bulk discounts for multiple units?
Yes, we provide competitive pricing for bulk orders. Please contact our sales team for a personalised quote.
12. How long does delivery take?
Standard delivery times are 2–3 business days. Expedited shipping options may be available upon request.
13. Can I return the pallet truck if it doesn’t meet my needs?
Yes, we have a 30-day return policy. The product must be in its original condition and packaging.
Safety and Regulations
14. Are the adjustable pallet trucks compliant with safety standards?
Yes, they meet all relevant UK and EU safety regulations.
15. Are safety guidelines included with the product?
Yes, a user manual with safety and operational guidelines is included in the packaging.
