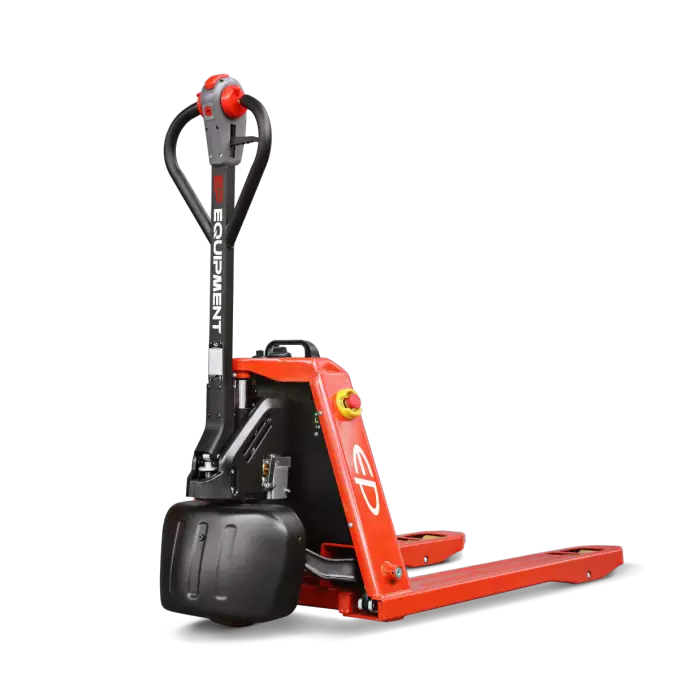

LITHIUM-ION POWERED PALLET TRUCK - EPL153 RANGE
For smooth and effortless pallet movement, our electric pallet truck is the optimal choice for unloading delivery vehicles equipped with tail lifts and relocating pallets. With its newly designed ergonomic handle and compact structure, it ensures easy manoeuvrability, making it ideal for use in tight, narrow spaces.
The electric pallet truck is engineered to handle a variety of pallet types, including UK pallets and euro pallets. Fitted with 1150mm length forks, the powered pallet truck (ppt) ensures both pallet stability and ease of operation.
LITHIUM-ION POWERED PALLET TRUCK
Key Features
- 0.75kW Motor Rating
- Electromagnetic Braking System Improves Safety
- Effortless Motion for Drivers and Warehouse Operatives
- Faster and Lighter than DriverTruk 20
- Drives over Broken-up Pathways, Warehouse Floors and Half-Drop Kerbs
- Simple, Controllable, Powered Lifting
- Newly Designed Handle Array
- Super Safe Components - No More Drivers Off Sick From Injury
- Improved Smart Swappable Lithium-ION Battery
- Three-Pin Charging ~ 240v
- Supplied with external charge
Premium Features
- Now With Electric Lift
- Shorter Turning Circle when Handle is in Upright Position
- Variant Speed Controls
- Heavy Duty Drive Wheel Cover
- Removable Lithium-ION Battery
- High Capacity Pump
| MODEL | CAPACITY (KG) | SIZE (MM) |
| EPL 1531 | 1500 | 1150 X 560 |
| EPL 1532 | 1500 | 1000 X 680 |
| Load capacity (kg) | 1500 kg |
| Min. lift height (mm) | 82 mm |
| Max. lift height (mm) | 115 mm |
| Fork width (mm) | 150 mm |
| Steering wheel material | Polyurethane |
| Fork wheel material | Polyurethane |
| Fork wheel Ø (mm) | 80 mm |
| Steeringwheel Ø (mm) | 210 mm |
| Battery voltage (V) | 24 V |
| Battery capacity (Ah) | 20 Ah |
| Moving speed with load (km/h) | 4.5 km/h |
| Moving speed without load (km/h) | 5.0 km/h |
| Weight (kg) | 120 kg |
| Steering wheel width (mm) | 70 mm |
| Turning radius (mm) | 1330 mm |
| Fork wheel width (mm) | 60 mm |
| O/A height (mm) | 1190 mm |
CLICK HERE FOR FULL SPECIFICATION
Call freephone 0800 458 8025 to find out more information.
PALLET TRUCK SERVICING
If you require any servicing please give us a call on 0800 458 8025.
| Shipping For Product | 0.000000 |
|---|---|
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
Frequently Asked Questions
Product Specifications
1. What is the load capacity of the Lithium-Ion Powered Pallet Truck?
The Lithium-Ion Powered Pallet Truck supports up to 1,500 kg, making it suitable for handling various pallet sizes, including Euro and standard GKN/Chep pallets.
2. What are the fork dimensions of this pallet truck?
The pallet truck features fixed forks measuring 1,150 mm in length and 560 mm in width.
3. What type of battery is used in this pallet truck?
It uses a quick-change, maintenance-free 24V/20Ah lithium-ion battery, providing long operational times and increased productivity.
4. What safety features does the Lithium-Ion Powered Pallet Truck have?
The pallet truck includes an emergency push button, belly button, and electrobrake for enhanced safety during operation.
Usage and Operation
5. How does the lithium-ion battery benefit the pallet truck?
The lithium-ion battery allows for quick replacement, offers longer operational time, and boosts productivity by reducing downtime.
6. Is this pallet truck suitable for use in confined spaces?
Yes, the compact and lightweight design makes it highly maneuverable, even in tight spaces such as elevators and narrow aisles.
7. How does the ergonomic handle benefit the operator?
The ergonomic handle incorporates electric lifting functions, significantly reducing operator strain and enhancing comfort during use.
Maintenance and Care
8. What regular maintenance is required?
Regular maintenance includes checking the battery, hydraulic systems, and inspecting the wheels for wear and tear.
9. What is the warranty period for this product?
The Lithium-Ion Powered Pallet Truck comes with a standard warranty, and an extended two-year warranty is available.
10. Are replacement parts available?
Yes, replacement parts such as the lithium-ion battery, wheels, and hydraulic components are available through our store.
Purchasing and Delivery
11. Do you offer bulk discounts for multiple units?
Yes, we offer competitive pricing for bulk orders. Please contact our sales team for a personalized quote.
12. How long does delivery take?
Standard delivery times are 2–3 business days. Expedited shipping options may be available upon request.
13. Can I return the pallet truck if it doesn’t meet my needs?
Yes, we have a 30-day return policy. The product must be in its original condition and packaging.
Safety and Regulations
14. Is the Lithium-Ion Powered Pallet Truck compliant with safety standards?
Yes, it meets all relevant UK and EU safety regulations.
15. Are safety guidelines included with the product?
Yes, a user manual with safety and operational guidelines is included in the packaging.
