ELECTRIC PALLET TRUCK - LTEPF41150
A fully electric pallet truck with a robust 1500KG capacity. Streamline your warehouse operations with ease and efficiency.

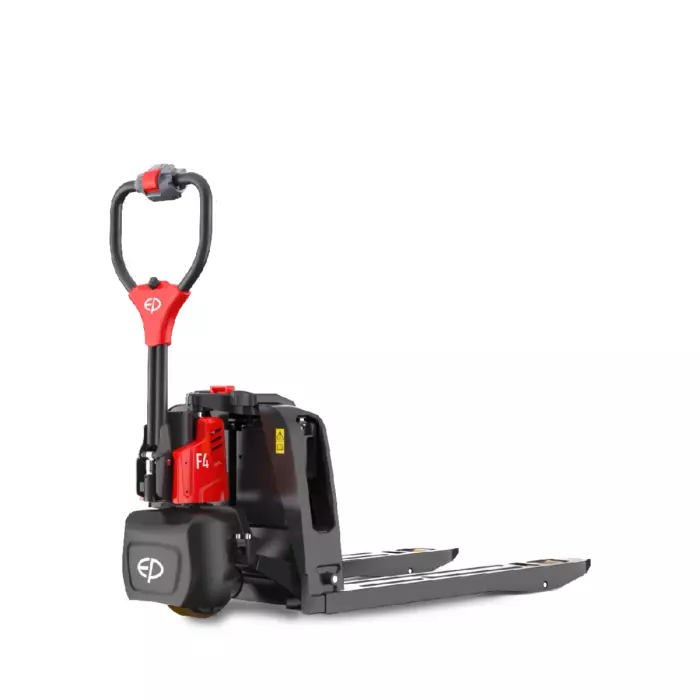

Electric Pallet Truck - LTEPF41150
Product Overview
The Electric Pallet Truck - LTEPF41150 is a fully electric pallet truck designed to streamline your warehouse operations with ease and efficiency. Equipped with a built-in lithium-ion battery, it offers a cost-effective handling solution with unparalleled flexibility. Operators can select either one battery plus a portable storage container or two batteries, catering to various work settings, from light to heavy duties, indoors to outdoors.
Key Features
- Fully Electric Operation: Features electric lift and forward/reverse drive functions, reducing manual effort and increasing productivity.
- Removable Lithium-Ion Battery: Allows for quick and easy battery replacement, ensuring continuous operation. Approximate usage time is 2-3 hours with a single battery and 4-6 hours with two batteries.
- Variable Speed Control: Enables operators to adjust speed according to the task, enhancing safety and efficiency.
- Electromagnetic Braking System: Improves safety by providing reliable and responsive braking.
- Ergonomic Handle Design: Newly designed handle array offers comfortable and intuitive controls for the operator.
- Compact and Lightweight: Weighs only 120 kg, making it easy to maneuver in confined spaces.
- Durable Construction: Built with a robust frame to withstand demanding industrial environments.
- 12-Month Warranty: Comes with a standard 12-month warranty, providing peace of mind.
Specifications
Specification | Details |
Load Capacity | 1,500 kg |
Overall Width | 695 mm |
Minimum Lift Height | 82 mm |
Maximum Lift Height | 105 mm |
Fork Length | 1,150 mm |
Fork Width | 150 mm |
Steering Wheel Material | Polyurethane |
Fork Wheel Material | Polyurethane |
Fork Wheel Diameter | 80 mm |
Steering Wheel Diameter | 210 mm |
Battery Voltage | 24 V |
Battery Capacity | 20 Ah |
Moving Speed with Load | 4.0 km/h |
Moving Speed without Load | 4.5 km/h |
Weight | 120 kg |
Steering Wheel Width | 70 mm |
Turning Radius | 1,360 mm |
Distance Between Forks | 240 mm |
Overall Length | 1,550 mm |
Fork Wheel Width | 60 mm |
Overall Height | 1,190 mm |
Applications
- Warehousing: Ideal for transporting palletized goods efficiently within warehouse environments.
- Retail: Useful for handling stock in retail settings, ensuring quick and accurate movement of goods.
- Manufacturing: Assists in the efficient movement of materials and products along production lines.
- Distribution Centers: Enhances the loading and unloading processes, improving overall workflow.
Related Products
- Lithium Powered Pallet Truck 1500kg Capacity - F15: A robust solution with a 1,500 kg capacity, featuring a quick-change lithium-ion battery for continuous operation.
- Lithium-Ion Powered Pallet Truck - EPL153 Range: Offers a 1,500 kg capacity with a removable lithium-ion battery, providing high performance and low noise operation.
- Electric Pallet Truck with Lithium Technology - LTEY Range: Equipped with a quick-change, maintenance-free 48V lithium-ion battery, this pallet truck supports up to 1,500 kg or 2,000 kg, accommodating both Euro and standard GKN/Chep pallets.
Order Now
Enhance your material handling operations with the Electric Pallet Truck - LTEPF41150. Order today and benefit from free delivery to UK mainland (excluding Highlands & Northern Ireland).
Frequently Asked Questions
Product Specifications
1. What is the load capacity of the Electric Pallet Truck?
The Electric Pallet Truck supports up to 1,500 kg, making it suitable for handling both Euro and standard GKN/Chep pallets.
2. What are the fork dimensions of this pallet truck?
The pallet truck features fixed forks measuring 1,150 mm in length and 560 mm in width.
3. What type of battery is used in this pallet truck?
It uses a quick-change, maintenance-free 24V/20Ah lithium-ion battery, providing long operational times and increased productivity.
4. What are the safety features of this pallet truck?
The Electric Pallet Truck includes an emergency push button, belly button, and electrobrake for enhanced safety during operation.
Usage and Operation
5. How does the lithium-ion battery benefit the pallet truck?
The lithium-ion battery allows for quick replacement and offers longer operational time, effectively doubling working time and boosting productivity.
6. Is this pallet truck suitable for use in confined spaces?
Yes, the compact and lightweight design makes it highly maneuverable, even in tight spaces such as elevators and narrow aisles.
7. How does the ergonomic handle benefit the operator?
The ergonomic handle incorporates electric lifting functions, significantly reducing operator strain and enhancing comfort during use.
Maintenance and Care
8. What regular maintenance is required?
Regular maintenance includes checking the battery, hydraulic systems, and inspecting the wheels for wear and tear.
9. What is the warranty period for this product?
The Electric Pallet Truck comes with a standard warranty, and an extended two-year warranty is available.
10. Are replacement parts available?
Yes, replacement parts such as the lithium-ion battery, wheels, and hydraulic components are available through our store.
Purchasing and Delivery
11. Do you offer bulk discounts for multiple units?
Yes, we offer competitive pricing for bulk orders. Please contact our sales team for a personalized quote.
12. How long does delivery take?
Standard delivery times are 2–3 business days. Expedited shipping options may be available upon request.
13. Can I return the pallet truck if it doesn’t meet my needs?
Yes, we have a 30-day return policy. The product must be in its original condition and packaging.
Safety and Regulations
14. Is the Electric Pallet Truck compliant with safety standards?
Yes, it meets all relevant UK and EU safety regulations.
15. Are safety guidelines included with the product?
Yes, a user manual with safety and operational guidelines is included in the packaging.
