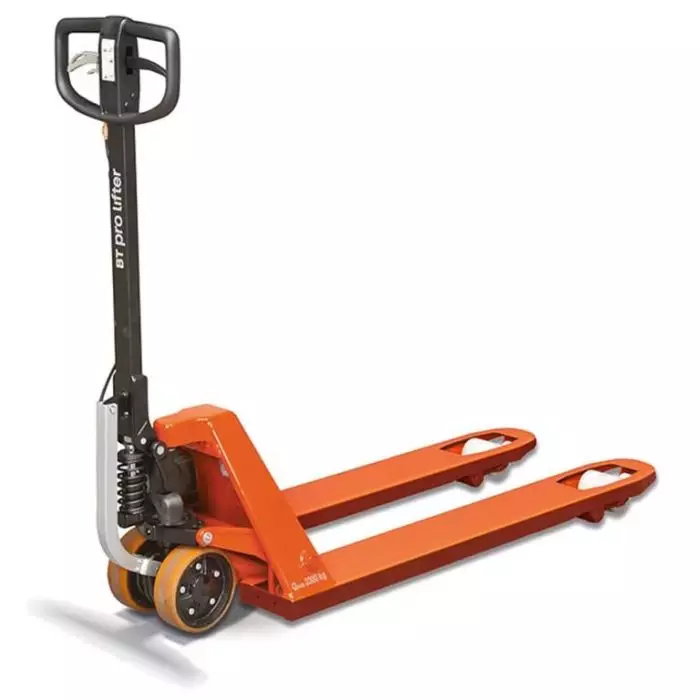

BT PRO LIFTER - LHM230P RANGE

£738.00
SKU
LHM230P RANGE
In stock


The BT PRO LIFTER has a connection between the tow bar and the steering wheels that transfers the force from the pump stroke to the wheel to get the truck started. This start assistance reduces the amount of effort required to make the truck move. The starting force is reduced with 2/3 in comparison to a standard lifter.

BT Lifter Standard Pallet Truck – BT LHM230 Pro Lifter

Product Overview

The BT LHM230 Pro Lifter is a premium hand pallet truck engineered for effortless movement of heavy loads. Requiring up to 67% less starting force than conventional trucks, it features Toyota’s patented Pro Lifter technology, making it ideal for high-frequency operations in tight or uneven spaces. Built for smooth, safe handling and long-term reliability, this truck is suited to indoor logistics, retail, and warehousing environments.

Key Features

  • Pro Lifter design requires up to 67% less starting force
  • Assisted start technology – the truck begins moving with minimal effort
  • Easy manoeuvrability in both directions, even in confined spaces
  • Climbs easily over thresholds and obstacles
  • Smooth lowering function via stainless steel valve for extended life
  • Steel pushrods and up to 12 grease points for maximum durability
  • Reinforced forks and overload protection system included
  • Manufactured using ZEROsteel – environmentally-friendly construction

Technical Specification

Model BT LHM230 Pro Lifter
Capacity 2300 kg
Max Lift Height 200 mm
Fork Length 1150 mm (standard)
Width over Forks 520 mm
Chassis Material ZEROsteel – reduced carbon footprint
Applications Indoor; retail, warehouse, logistics, manufacturing

Typical Applications

  • Warehousing: Move heavy pallets easily and navigate tight aisles with minimal effort.
  • Retail Back-of-House: Quiet and smooth for use near customer areas or in small storerooms.
  • Distribution Centres: Ideal for repetitive movements of heavy stock on smooth or uneven surfaces.
  • Production Areas: Easily reposition goods, raw materials, or work-in-progress items.
  • Transport & Loading Bays: Reduces operator strain when moving pallets on ramps or thresholds.

Related Products

  • Short Pallet Trucks: Compact units for Euro pallets and tight turning radii
  • Low Profile Pallet Trucks: Designed for handling low-clearance pallets or skids
  • Electric Powered Pallet Trucks: Battery-operated solutions for high-volume environments
  • Weigh Scale Pallet Trucks: Combine lifting and weighing in one step

Order Now

The BT LHM230 Pro Lifter offers class-leading handling with up to 67% less effort. Engineered by Toyota, this model provides productivity gains and ergonomic safety for demanding workplaces.

Call us today on 0800 458 8025 or email us directly to place your order or request more details.

Frequently Asked Questions


Product Specifications

1. What is the load capacity of the BT Pro Lifter?
The BT Pro Lifter can handle loads up to 2,300 kg, making it suitable for various industrial applications.

2. What are the fork dimensions of this pallet truck?
The BT Pro Lifter is available in the following fork dimensions:

Model Fork Length (mm) Fork Width (mm)
LHM230P-1000X520 1,000 520
LHM230P-1000X685 1,000 685
LHM230P-1150X520 1,150 520
LHM230P-1150X685 1,150 685

3. What is the lowered and raised fork height?
The forks have a lowered height of 85 mm and can be raised to a maximum height of 200 mm.

4. What type of wheels does the BT Pro Lifter have?
The BT Pro Lifter is equipped with nylon steer wheels and tandem load rollers, providing smooth operation on various surfaces.


Usage and Operation

5. How does the reduced starting force feature benefit the operator?
The BT Pro Lifter requires up to 67% less effort to initiate movement compared to standard pallet trucks, minimizing operator fatigue and improving efficiency.

6. How does the quick lift functionality work?
The quick lift function allows loads to be elevated in just two pump strokes, increasing efficiency in high-volume operations.

7. Is the BT Pro Lifter suitable for intensive industrial use?
Yes, the BT Pro Lifter is built to last five times longer than other pallet trucks and is designed for use in high-demand environments.


Maintenance and Care

8. What regular maintenance is required?
Regular maintenance includes checking the hydraulic system for leaks, lubricating moving parts, and inspecting wheels for wear and tear.

9. What is the warranty period for this product?
The BT Pro Lifter comes with a 12-month warranty covering manufacturing defects.

10. Are replacement parts available?
Yes, replacement parts such as wheels, hydraulic components, and other parts are available through our store.


Purchasing and Delivery

11. Do you offer bulk discounts for multiple units?
Yes, we provide competitive pricing for bulk orders. Please contact our sales team for a personalized quote.

12. How long does delivery take?
Standard delivery times are 2–3 business days. Expedited shipping options may be available upon request.

13. Can I return the pallet truck if it doesn’t meet my needs?
Yes, we have a 30-day return policy. The product must be in its original condition and packaging.


Safety and Regulations

14. Is the BT Pro Lifter compliant with safety standards?
Yes, it meets all relevant UK and EU safety regulations.

15. Are safety guidelines included with the product?
Yes, a user manual with safety and operational guidelines is included in the packaging.
