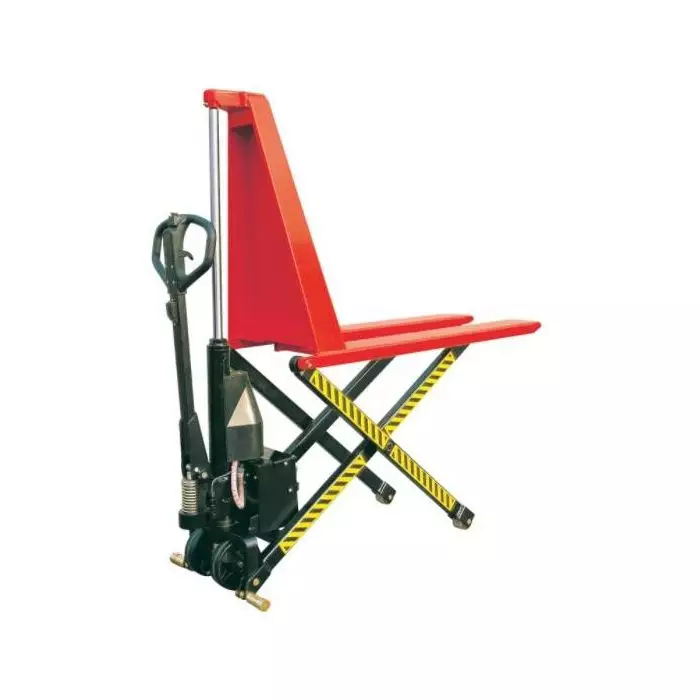

ELECTRIC HIGH LIFTING PALLET TRUCKS - LTMHLE/LTHBLE RANGE
Electric High Lifting Pallet Trucks
Product Overview
Our Electric High Lifting Pallet Trucks, also known as High-Lifters or Scissor Lift Pallet Trucks, are engineered to eliminate repetitive back strain during manual pallet loading. Utilizing a scissor mechanism, these trucks elevate pallets to an ergonomic working height of 800mm, conforming to the latest health and safety regulations.
Key Features
- Ergonomic Design: Lifts pallets to a comfortable working height, reducing manual handling injuries.
- Electric Lift Mechanism: Smooth and efficient lifting via a scissor action.
- Automatic Braking System: Engages brakes automatically when raised above 400mm for enhanced safety.
- Three-Position Control Lever: Provides precise control over lifting, lowering, and neutral positions.
- Automatic Descending Speed Control: Ensures safe and controlled lowering of loads.
- Manual Lift Override: Allows manual operation in case of battery depletion, ensuring uninterrupted use.
Available Models and Specifications
| Model | Capacity (kg) | Lift Height (mm) | Fork Dimensions (mm) |
| LTMHL540E | 1,000 | 800 | 1170 x 540 |
| LTMHL680E | 1,000 | 800 | 1170 x 680 |
| LTHBL15560E | 1,500 | 800 | 1170 x 560 |
| LTHBL15680E | 1,500 | 800 | 1170 x 680 |
Applications
These Electric High Lifting Pallet Trucks are ideal for:
- Warehousing and logistics operations requiring ergonomic material handling solutions.
- Manufacturing facilities where components need to be positioned at optimal working heights.
- Retail environments for efficient stock handling and replenishment.
- Any setting where reducing manual lifting and enhancing productivity are priorities.
Related Products
- Manual High Lifting Pallet Trucks: Cost-effective solution for lifting pallets to ergonomic heights without electric assistance.
- Standard Electric Pallet Trucks: Ideal for transporting pallets over longer distances with minimal effort.
- Scissor Lift Tables: Versatile lifting platforms for various material handling applications.
Order Now
Enhance your material handling operations with our Electric High Lifting Pallet Trucks. Order now or contact us at 0800 458 8025 for more information.
Frequently Asked Questions
General Product Information
1. What are Electric High Lift Pallet Trucks?
Electric High Lift Pallet Trucks are material handling devices that combine the functionality of a standard pallet truck with the ability to elevate loads to ergonomic working heights. This feature reduces manual handling strain and enhances productivity in various industrial settings.
2. What are the key features of Electric High Lift Pallet Trucks?
- Ergonomic Design: Allows lifting of loads to convenient heights, minimizing back strain.
- Electric Lift Mechanism: Utilizes a scissor action to elevate pallets smoothly.
- Electric Drive Options: Some models offer electric drive for enhanced maneuverability.
- Safety Features: Equipped with automatic braking when raised above certain heights and three-position control levers for precise operation.
- Durable Construction: Built to withstand heavy-duty use in industrial environments.
3. What are the available models and their specifications?
- LTMHL540E:
- Capacity: 1,000 kg
- Lift Height: 800 mm
- Fork Size: 1170 x 540 mm
- LTMHL680E:
- Capacity: 1,000 kg
- Lift Height: 800 mm
- Fork Size: 1170 x 680 mm
- LTHBL15560E:
- Capacity: 1,500 kg
- Lift Height: 800 mm
- Fork Size: 1170 x 560 mm
- LTHBL15680E:
- Capacity: 1,500 kg
- Lift Height: 800 mm
- Fork Size: 1170 x 680 mm
Usage and Operation
4. How are Electric High Lift Pallet Trucks operated?
These trucks are operated using a control lever that allows for precise lifting and lowering of the platform to the desired height. Some models also feature electric drive for enhanced maneuverability.
5. Are Electric High Lift Pallet Trucks suitable for handling euro pallets?
Yes, these trucks are designed to handle standard euro pallets and other closed-bottom pallets.
Maintenance and Care
6. What maintenance is required for Electric High Lift Pallet Trucks?
Regular maintenance includes checking the hydraulic system for leaks, ensuring the safety valve is functioning correctly, and inspecting the battery and electrical components for any signs of wear.
Purchasing and Delivery
7. What is the price of an Electric High Lift Pallet Truck?
Prices vary depending on the model and features.
8. What is the delivery time for Electric High Lift Pallet Trucks?
Delivery times are typically 2-3 business days, depending on your location.
Safety and Regulations
9. Are Electric High Lift Pallet Trucks compliant with safety standards?
Yes, they are designed to meet safety regulations and are CE marked to ensure compliance with relevant safety standards.
10. Are safety guidelines included with Electric High Lift Pallet Trucks?
Yes, each truck comes with detailed safety guidelines to ensure safe operation within your work environment.
