FULLY POWERED STRADDLE STACKERS - LTLESS RANGE
Fully Powered Straddle Stackers - LTLESS Range
Product Overview

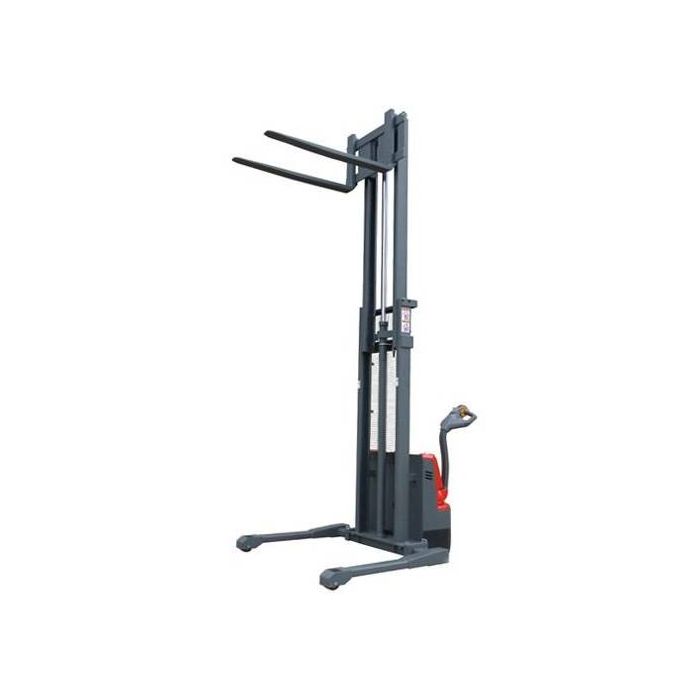

The Fully Powered Straddle Stackers - LTLESS Range are lightweight, compact, and reliable machines designed for efficient pallet handling in small warehouses and factories. Both drive and lift movements are operated via buttons on an ergonomically designed handle, ensuring ease of use and enhanced productivity.
Key Features
- Load Capacity: Capable of lifting loads up to 1,000 kg.
- Electric Drive and Lift: Both movements are fully powered, controlled by ergonomically placed buttons for user convenience.
- Adjustable Straddle Legs: Ideal for handling imperial and CHEP pallets, as well as other closed-bottom pallets and cages.
- Adjustable Forged Forks: Suitable for loading special and low-profile pallets, with width over forks adjustable between 210 mm and 850 mm.
- Powerful Battery System: Equipped with two 12V/120Ah batteries and an onboard charger compatible with standard 230V/13A sockets; optional 110V charger available.
- Durable Construction: Built with robust materials and polyurethane wheels (diameter: front 195 mm, rear 100 mm) for longevity and smooth operation.
Specifications
| Model | Max. Lift Height (mm) | Overall Length (mm) | Overall Width (mm) | Straddle Gap (mm) | Overall Closed Height (mm) |
| LTLESS 10.16 | 1,600 | 1,740 | Adjustable: 1,140 – 1,410 | Adjustable: 995 – 1,255 | 2,070 |
| LTLESS 10.25 | 2,500 | 1,830 | Adjustable: 1,140 – 1,410 | Adjustable: 995 – 1,255 | 1,900 |
| LTLESS 10.33 | 3,300 | 1,785 | Adjustable: 1,140 – 1,410 | Adjustable: 995 – 1,255 | 2,150 |
Applications
- Warehousing: Efficiently handles stacking and unstacking of various pallet types, including closed-bottom pallets.
- Manufacturing: Assists in transporting materials between production lines and storage areas.
- Retail: Suitable for moving merchandise in stockrooms and on the shop floor.
- Logistics: Facilitates the loading and unloading of delivery vehicles, enhancing supply chain efficiency.
Related Products
- Straddle Pallet Stackers - LTKISA Range: Manual stackers with adjustable straddle legs, ideal for handling closed-bottom pallets in various settings.
- Electric Lift Stacker 1000kg - LTVVE1000 Range: Electric lift stackers designed to lift euro pallets to various heights, offering robust performance for material handling tasks.
- Pramac Semi-Electric Stacker - TX Range: Combines manual traction with electrohydraulic lifting, suitable for handling heavy loads in industrial and warehouse settings.
Order Now
Enhance your material handling operations with the Fully Powered Straddle Stackers - LTLESS Range. Order today to experience reliable and efficient pallet handling in your facility.
Frequently Asked Questions
General Product Information
-
What is the maximum lifting capacity of the LTLESS Fully Powered Straddle Stackers?
- The LTLESS stackers have a maximum lifting capacity of 1,000 kg, making them suitable for handling standard euro pallets and other closed-bottom pallets.
-
What are the available lift heights for these stackers?
- The LTLESS range offers three models with varying lift heights:
- LTLESS 10.16: Maximum lift height of 1,600 mm.
- LTLESS 10.25: Maximum lift height of 2,500 mm.
- LTLESS 10.33: Maximum lift height of 3,300 mm.
- The LTLESS range offers three models with varying lift heights:
-
What are the dimensions of the stackers?
- Fork Length: 1,150 mm.
- Width over Forks: Adjustable between 210 mm and 850 mm.
- Overall Length:
- LTLESS 10.16: 1,740 mm.
- LTLESS 10.25: 1,830 mm.
- LTLESS 10.33: 1,785 mm.
- Overall Width: Adjustable between 1,140 mm and 1,410 mm.
- Straddle Gap: Adjustable between 995 mm and 1,255 mm.
- Overall Closed Height:
- LTLESS 10.16: 2,070 mm.
- LTLESS 10.25: 1,900 mm.
- LTLESS 10.33: 2,150 mm.
-
What safety features are included with the stackers?
- The stackers are equipped with adjustable straddle legs, enhancing stability when handling closed-bottom pallets. They also feature adjustable forged forks for loading special and low-profile pallets.
Usage and Operation
-
How are the stackers operated?
- Both drive and lift movements are controlled via buttons on an ergonomically designed handle, providing ease of use in small warehouses and factories.
-
Are the stackers suitable for handling euro pallets?
- Yes, the adjustable straddle legs make them ideal for handling standard euro pallets and other closed-bottom pallets.
Maintenance and Care
- What maintenance is required for the stackers?
- Regular maintenance includes checking the battery charge levels and ensuring all moving parts are properly lubricated to maintain optimal performance.
Purchasing and Delivery
-
What is the price of the stackers?
- The pricing varies by model.
-
What is the delivery time for the stackers?
- Delivery times are typically 2-3 business days, depending on your location.
Safety and Regulations
-
Are the stackers compliant with safety standards?
- Yes, the stackers are designed to meet standard safety regulations for material handling equipment.
-
Are safety guidelines included with the stackers?
- Yes, the stackers come with safety guidelines to ensure safe operation within warehouse environments.
