MANUAL BASE EMPTYING STILLAGE - LTBDB RANGE

£897.00
SKU
LTBDB RANGE
In stock


Once full, emptying the dumping containers is a quick and simple operation via it's bottom opening hinged base, operated by means of a manual wire pull cord. The hinged base, once open, automatically re-locks when the stillage is lowered back to the ground.

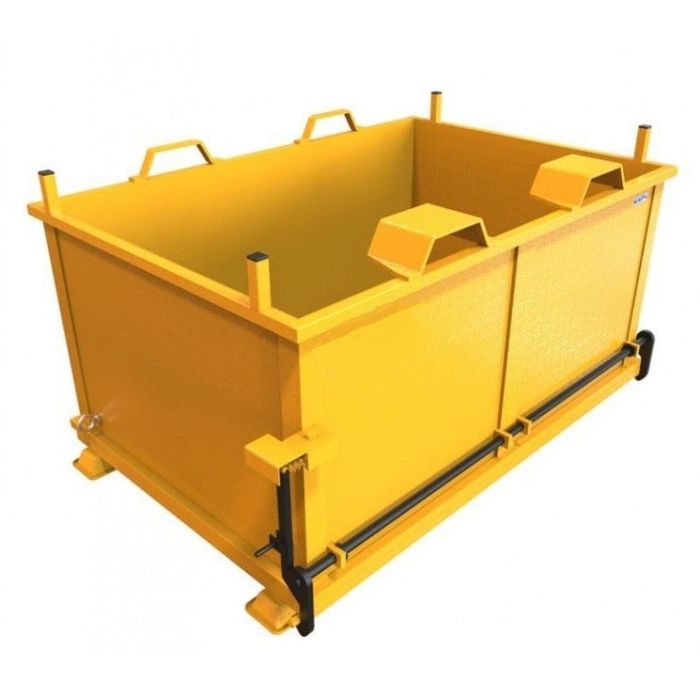

MANUAL BASE EMPTYING STILLAGE

Our Base Emptying Stillages offer a simple means of collecting, moving and safely dumping factory waste whilst utilising your forklift truck.

Once full, emptying the dumping containers is a quick and simple operation via it's bottom opening hinged base, operated by means of a manual wire pull cord.  The hinged base, once open, automatically re-locks when the stillage is lowered back to the ground.

Our base emptying dumping containers are ideal for placing around the factory or workshop and can prove a great waste handling alternative to conventional forklift tipping skips, especially when space is at a premium.  Pallet feet on the underside of the stillage allows for convenient stacking and storage capabilities.

With a mild steel construction, the dumping containers can come supplied in a variety of colours to help with your waste segregation, and like all our forklift attachments, come supplied fully tested and certified for compliance with the latest Health & Safety Regulations.

  • - Manufactured from 2mm thick steel side plates and 3mm thick base plate, offering long service life properties
  • - Base opening operated by a simple to use manual wire pull cord, no mechanical parts to breakdown
  • - Base locks automatically when lowered to the ground, helps speed up operations and increased productivity
  • - Pallet feet fitted to underside of stillage to allow safe and convenient stacking capabilities where space is at a premium
  • - Supplied with safety securing chain to ensure the stillage is positively connected to the lift truck
  • - 'CE' marked and supplied with Certificate of Conformity to meet Health & Safety Regulations



Model Ref Volume Capacity
[M3]
Length
[mm]
Width
[mm]
Height
[mm]
LTBDB 5 0.5 949 1203 768
LTBDB 10 1.00 1105 1696 868
LTBDB 15 1.50 1105 2003 1003



CLICK HERE FOR DATA SHEET

Call freephone 0800 458 8025 to find out more information.

More Information
Shipping For Product 0.000000
Calculate Shipping Per Product Quantity
Enable Shipping Per Product Yes

Can the base be opened in mid air ?

No, to release the base, the unit will have to be lowered onto the edge of the waste receptacle that you are emptying into



Can I fit wheels to the bottom ?

If required, wheels (castors) can be fitted during production
