FORKLIFT MOUNTED JIB - LOW PROFILE - LTLLJ RANGE

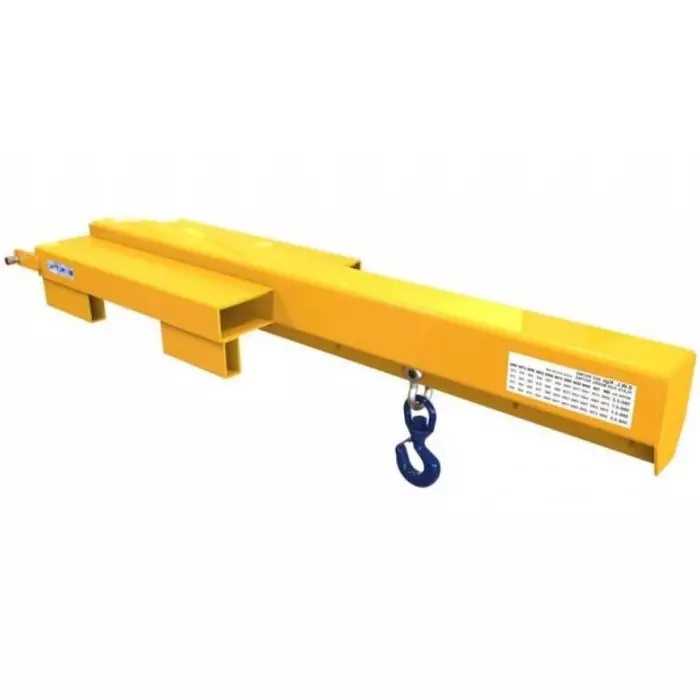

Low Profile Fork Mounted Jib – LTLLJ Range
Product Overview
The LTLLJ Range of Low Profile Fork Mounted Jibs offers an efficient and versatile lifting solution for forklift and telehandler users needing extended reach in confined or hard-to-access areas. Designed for operational simplicity and maximum control, this jib provides multiple lifting positions beneath its 1800mm long arm. Ideal for workshops, warehouses, and maintenance environments where headroom is limited or where manual handling needs to be reduced.
Key Features
- Low profile design for access into restricted spaces
- 1,800mm long jib arm for extended forward reach
- Multiple hook positions along the underside for flexible lifting
- Large fork pockets for easy drive-in mounting
- Secured with heel retaining pins for safe attachment
- Rated to suit forklift capacity and prevent overloading
- Comes with full capacity chart and CE certification
Technical Specification
| Model | Min. Truck Capacity (kg) | 500mm | 750mm | 1000mm | 1250mm | 1500mm | 1750mm | Max Fork Size (mm) | Fork Spread (mm) |
| LTLLJ 500-0.8 | 1000 | 800 | 650 | 500 | 380 | 310 | 230 | 130 x 50 | 365 |
| LTLLJ 500-1.0 | 1300 | 1000 | 800 | 630 | 470 | 388 | 280 | 130 x 50 | 365 |
| LTLLJ 500-1.3 | 1500 | 1300 | 900 | 680 | 500 | 450 | 380 | 130 x 50 | 365 |
| LTLLJ 500-1.8 | 2000 | 1800 | 1400 | 1100 | 900 | 720 | 580 | 130 x 50 | 365 |
| LTLLJ 500-2.2 | 2500 | 2200 | 1800 | 1400 | 1100 | 1000 | 830 | 130 x 50 | 440 |
| LTLLJ 500-2.7 | 3000 | 2700 | 2050 | 1450 | 1200 | 1100 | 900 | 160 x 60 | 440 |
| LTLLJ 500-3.1 | 3500 | 3100 | 2500 | 1900 | 1500 | 1200 | 1000 | 160 x 60 | 440 |
| LTLLJ 500-3.5 | 4000 | 3500 | 2700 | 2000 | 1600 | 1300 | 1100 | 160 x 60 | 440 |
| LTLLJ 500-4.4 | 5000 | 4400 | 3400 | 2700 | 2200 | 1850 | 1400 | 160 x 60 | 510 |
Typical Applications
- Maintenance Departments: Access heavy components like motors, presses or tools inside machines without dismantling equipment or using manual hoists.
- Engineering and Assembly Lines: Reach into machinery or behind safety barriers for controlled, safe placement of large parts.
- Warehouses: Move awkward, non-palletised goods such as cables, piping or mechanical systems with precision.
- Construction Projects: Position steelwork or materials in tight areas such as ceilings, mezzanines or enclosed bays.
- Vehicle Workshops: Extract or lift parts from engine bays or vehicles where vertical space is limited.
Related Products
- Fork Mounted Jib: General-purpose jib offering greater vertical clearance for open-area lifting.
- Fork Mounted Low Profile Jib: A slightly taller version ideal for warehouses with low ceilings or under mezzanines.
- Adjustable Fork Mounted Jib: Features multiple reach positions and greater flexibility for variable loads.
- Economy Adjustable Fork Mounted Hook: Lightweight hook with screw clamp design, ideal for general lifting at a lower price point.
Order Now
The Low Profile Fork Mounted Jib from the LTLLJ range is the perfect choice for tight-space lifting, offering reliable performance and safe operation. With a variety of capacities and lengths available, it’s designed to meet your specific handling needs.
Call us today on 0800 458 8025 or email us directly to place your order or request more details.
Frequently Asked Questions
General Product Information
- What is the Low Profile Forklift Mounted Jib?
The Low Profile Forklift Mounted Jib is a versatile attachment that extends the reach of a forklift or telehandler, enabling the handling of loads in confined or hard-to-access areas. It features a low-profile design and multiple lifting points to offer maximum flexibility when lifting and positioning loads.
- What are the key features of this jib?
- Low Profile Design: Allows access into confined spaces for easier load handling.
- Multiple Hook Positions: Provides flexibility for lifting loads of different sizes and shapes.
- Long Reach: The 1,800 mm jib arm offers an extended reach for handling loads beyond the standard fork length.
- Secure Attachment: Heel retaining pins ensure the jib is safely secured to the forklift forks.
- Certified Compliance: 'CE' marked and supplied with a Certificate of Conformity to meet Health & Safety Regulations.
- What are the specifications of the Low Profile Forklift Mounted Jib?
- Capacity: Varies by model, available in a range of capacities.
- Length: 1,800 mm reach for extended handling capability.
- Fork Size: Compatible with most forklift forks, but it’s important to verify compatibility with your specific equipment.
Usage and Operation
- How is the Low Profile Forklift Mounted Jib operated?
Slide the jib onto the forklift forks, positioning it in the desired location. Use the heel retaining pins to secure the jib in place, ensuring it remains firmly attached during use. Attach the load to one of the multiple lifting points on the jib arm and use the forklift to lift and transport the load as required.
- Can the jib be used with any forklift or telehandler?
The Low Profile Jib can be used with forklifts and telehandlers that meet the fork size and capacity requirements for the attachment. It is essential to verify that your equipment meets these specifications to ensure safe and effective use.
- Is the Low Profile Forklift Mounted Jib easy to use?
Yes, the jib is designed for quick attachment and detachment. It offers easy positioning and secure attachment with heel retaining pins, making it a user-friendly solution for extending forklift or telehandler capabilities.
Maintenance and Care
- What maintenance is required for the jib?
Regular maintenance includes inspecting the jib for signs of wear or damage, particularly on the lifting points and attachment mechanisms. Ensure that all components, such as heel retaining pins, are in good working condition. Clean the jib regularly to prevent dirt buildup, and replace any damaged components to maintain safety and performance.
Purchasing and Delivery
- What is the delivery time for the Low Profile Forklift Mounted Jib?
Delivery times are typically 7-10 business days, depending on location. For specific delivery estimates, contact Liftruck UK for details.
Safety and Regulations
- Is the jib compliant with safety standards?
Yes, it is 'CE' marked and comes with a Certificate of Conformity, ensuring it meets current Health & Safety Regulations.
- Are safety guidelines included with the jib?
Yes, the jib comes with comprehensive safety guidelines to ensure proper usage and to help prevent accidents during operation.
