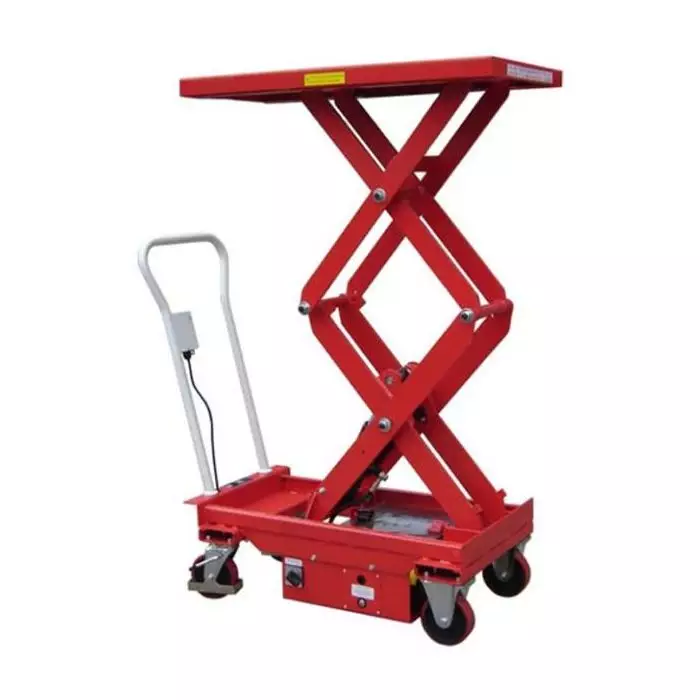

ELECTRIC DOUBLE SCISSOR LIFT TABLE - LTESL RANGE
ELECTRIC DOUBLE SCISSOR LIFT TABLE
The Electric Double Scissor Lift Table is an advanced material handling solution, expertly crafted to meet the demands of industrial environments like warehouses, factories, and workshops. Engineered for performance, safety, and durability, this lift table is ideal for tasks requiring higher lifting capabilities without compromising stability or ease of operation.
Key Features
Impressive Lifting Heights: Equipped with a double scissor mechanism, it provides extended vertical reach, making it suitable for handling items at elevated workspaces.
Effortless Electric Operation: Powered by a reliable electric motor, the lift ensures smooth and precise height adjustments, reducing manual effort and increasing productivity.
Robust Construction: Built with high-quality materials to withstand heavy-duty use, offering long-lasting performance even in demanding settings.
Enhanced Safety Features: Includes safety stops, overload protection, and stable platform design to ensure secure operation at all times.
Versatile Application: Perfect for loading, unloading, positioning, or lifting heavy items, this table adapts seamlessly to a variety of industrial tasks.
Whether you're looking to enhance efficiency in your workflow or reduce manual strain, the Electric Double Scissor Lift Table is the ultimate tool for optimizing workplace operations. Its combination of high performance, safety, and ease of use makes it an indispensable asset for any industrial setup.
- - Battery electric powered operation
- - 12V maintenance free battery
- - 700W dc power pack
- - Time to maximum height: 14 - 17 seconds
- - Overall length including pedal: 1230mm
- - Can be used safely at any height
- - Fitted with two total stop brakes as standard to prevent the table from moving when loading and unloading
- - Fitted with an overload valve
- - Hard wearing and non-marking polyurethane tyres prevent damage to floors
- - Swivel wheels fitted with thread guards
- - Epoxy powder coated finish for durability
- - Issued with a test certificate in conformance with EU standard EN 1570
| MODEL | LTESL30D | LTESL50D | LTESL80D |
| Capacity: | 300kg | 500kg | 800kg |
| Platform Size (L x W): | 1010 x 520 mm | 1010 x 520 mm | 1010 x 520 mm |
| Closed Height: | 495 mm | 435mm | 510mm |
| Raised Height: | 1600 mm | 1618mm | 1440mm |
| Handle Height: | 1180 mm | 1180 mm | 1180 mm |
| Wheels Diameter: | ø 150 mm | ø 150 mm | ø 150 mm |
| Approx. Weight: | 183kg | 198kg | 208kg |
Call freephone 0800 458 8025 to find out more information.
| Shipping For Product | 0.000000 |
|---|---|
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
Frequently Asked Questions
Product Specifications
1. What is the load capacity of the Electric Double Scissor Lift Table?
The Electric Double Scissor Lift Table supports up to 300 kg, 500 kg, or 800 kg, depending on the model.
2. What is the height range of the lift table?
The lift table can be adjusted from a lowered height of 435 mm to a raised height of 1,600 mm, depending on the model.
3. What are the platform dimensions of the Electric Double Scissor Lift Table?
The platform dimensions are 1,010 mm in length and 520 mm in width for all models.
4. How does the Electric Double Scissor Lift Table operate?
The table is powered by a 12V maintenance-free battery and is operated via a foot pedal for hands-free control during use.
Usage and Operation
5. How is the lifting controlled?
Lifting is controlled by a foot pedal, providing hands-free operation to make loading and unloading tasks more efficient.
6. Can the lift table be used in confined spaces?
Yes, the compact design and wheels allow the table to be used in confined spaces like workshops, warehouses, and assembly lines.
7. How is the table moved?
The table is equipped with 150 mm wheels that are hard-wearing and non-marking to ensure smooth movement across various surfaces.
Maintenance and Care
8. What regular maintenance is required for this lift table?
Regular maintenance includes checking the hydraulic system, inspecting the wheels, ensuring the brakes are working properly, and making sure the battery is charged.
9. How long will the Electric Double Scissor Lift Table last?
With proper care and maintenance, the lift table is designed for long-lasting and reliable service in industrial settings.
Safety and Regulations
10. Is the Electric Double Scissor Lift Table compliant with safety standards?
Yes, the table is designed to meet the necessary safety standards for material handling equipment, including overload protection and total stop brakes.
11. Are safety guidelines included with the product?
Yes, the table comes with a user manual that includes safety and operational guidelines to ensure proper and safe usage.
