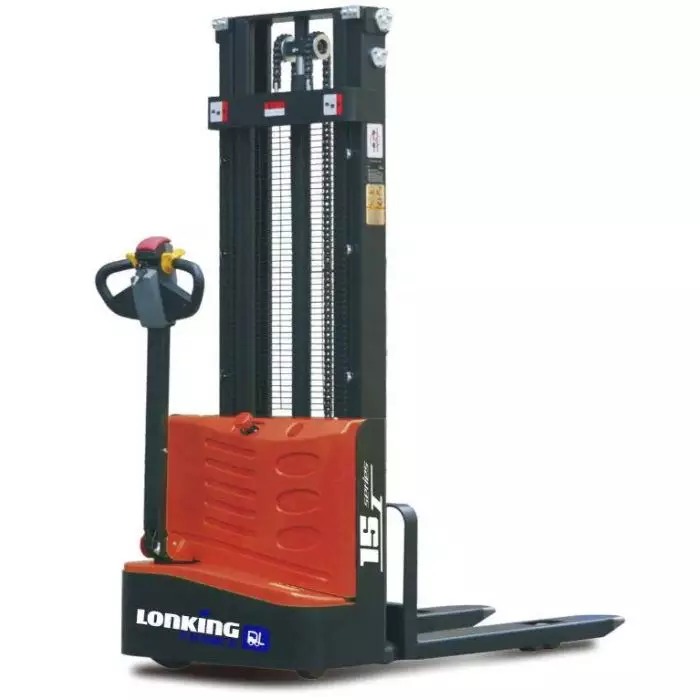

1500KG ELECTRIC PALLET STACKER - CL1535JB

£2,945.00
SKU
CL1535JB
In stock


Lift and transport pallets effortlessly with the 1500kg Electric Pallet Stacker. Designed for strength and efficiency, it’s perfect for warehouses, distribution centres, and industrial environments.

CL1535JB Electric Pallet Stacker – 3.5m Lift Height

Product Overview

The CL1535JB Electric Pallet Stacker is a robust and cost-effective solution for warehouse and material handling operations. With a maximum lift height of 3.5 metres and a load capacity of 1,500kg, this stacker combines intelligent design with durable performance. Its ergonomic control handle, side drive design, and compact turning radius make it perfect for tight aisle applications and daily logistics use.

Key Features

  • Maximum lift height: 3,500mm (3.5m)
  • Rated load capacity of 1,500kg for euro and UK pallets
  • Side-driving design reduces working aisle width
  • Permanent magnet drive motor: compact, lightweight, and energy-efficient
  • Integrated key switch and LED battery meter on the ergonomic handle
  • Up/down buttons on both sides of the handle for convenient operation
  • Durable waterproof micro switches imported from Germany
  • Tortoise speed mode for precise low-speed manoeuvring
  • Mechanical steering with resettable pneumatic spring handle
  • Maintenance-free battery with tool-free replacement

Technical Specification

Model CL1535JB
Load Capacity 1,500kg
Lift Height 3,500mm
Operating Mode Pedestrian (Walk-behind)
Driving Mode Electric
Tire Material Polyurethane
Motor Type DC Speed Control
Steering Type Mechanical Steering
Braking Type Electric Brake
Control Type DC Controller
Battery Maintenance-free, tool-free replacement
LED Battery Indicator Four-colour display (Green, Blue, Orange, Red)
Handle Height (Min/Max) Adjustable – Pneumatic spring with soft reset

Typical Applications

  • Warehouses and distribution centres
  • Manufacturing and assembly facilities
  • Retail stockroom operations
  • Cold storage environments
  • Transport hubs and loading docks

Order Now

The CL1535JB is an ideal choice for companies seeking a high-lift, reliable, and energy-efficient electric stacker. Its intelligent controls, maintenance-free design, and small turning radius make it a practical tool for any materials handling operation.

Call us today on 0800 458 8025 or email us directly to place your order or request more details.



Frequently Asked Questions

General Product Information

  1. What is the maximum lifting capacity of the G-UP-3 Electric Pallet Stacker?

    • The G-UP-3 Electric Pallet Stacker has a maximum lifting capacity of 1,500 kg, making it suitable for handling heavy loads in various industrial environments.
  2. What is the maximum lift height of this stacker?

    • The stacker offers a maximum lift height of 3,000 mm, allowing for efficient stacking and retrieval of pallets at elevated levels.
  3. What are the dimensions of the stacker?

    • Fork Length: 1,150 mm
    • Fork Width: 570 mm
    • Overall Length: 1,995 mm
    • Overall Width: 495 mm
    • Overall Height When Raised: 3,424 mm
    • Turning Radius: 1,342 mm
  4. What safety features are included with the stacker?

    • The stacker is equipped with reinforcing ribs between the inner and outer masts to prevent forward lean when the load is raised, enhancing overall stability. It also features a waterproof microswitch and an integrated key switch with a battery indicator on the handle for ease of operation.

Usage and Operation

  1. How is the stacker operated?

    • The stacker is designed for user-friendly operation, featuring ergonomic controls and a high-capacity battery for extended use. It includes a four-color LED power meter displaying green, blue, orange, and red indicators, and a tortoise mode to slow the vehicle down for enhanced safety.
  2. Is the stacker suitable for handling euro pallets?

    • Yes, the stacker is designed to handle standard euro pallets and other closed-bottom pallets, making it versatile for various material handling tasks.

Maintenance and Care

  1. What maintenance is required for the stacker?
    • The stacker features a maintenance-free battery, reducing the need for regular maintenance. However, it is recommended to periodically check the battery charge level and ensure that all moving parts are properly lubricated to maintain optimal performance.

Purchasing and Delivery

  1. What is the delivery time for the stacker?

    • Delivery times are typically 1-2 business days, depending on your location.

Safety and Regulations

  1. Is the stacker compliant with safety standards?

    • Yes, the stacker is constructed with reinforcing ribs between the inner and outer masts to ensure stability when the load is raised, and it features a waterproof microswitch for enhanced safety.
  2. Are safety guidelines included with the stacker?

    • Yes, the stacker comes with safety guidelines and is designed to ensure safe operation within warehouse environments.
