Frequently Asked Questions
General Product Information

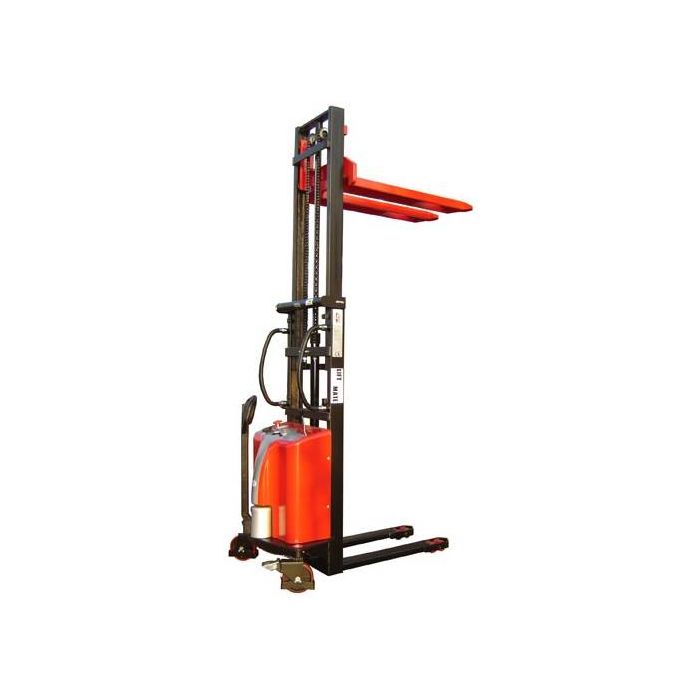

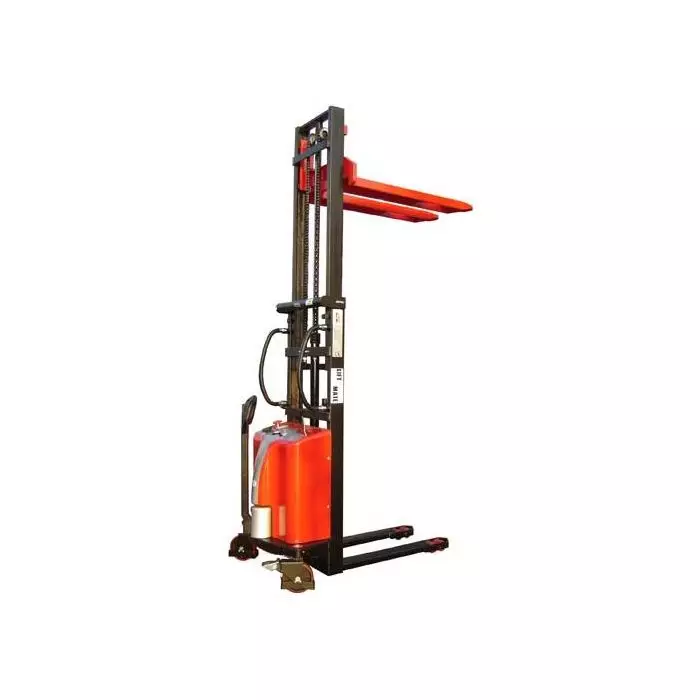

1. What is the maximum lifting capacity of the LTKIE1000 Electric Lift Pallet Stacker?
The LTKIE1000 Electric Lift Pallet Stacker has a maximum lifting capacity of 1,000 kg, making it suitable for handling standard euro pallets and other closed-bottom pallets.
2. What are the available lift heights for this stacker?
The stacker is available in three configurations:
- LTKIE1000/1600: Maximum lift height of 1,600 mm.
- LTKIE1000/2500: Maximum lift height of 2,500 mm.
- LTKIE1000/3000: Maximum lift height of 3,000 mm.
- All on a slope gradient of 2%
3. What are the dimensions of the stacker?
- Fork Length: 1,150 mm
- Fork Width: 545 mm
- Overall Length: 1,785 mm
- Overall Width: 665 mm
- Overall Closed Height: Varies by model:
- LTKIE1000/1600: 1,585 mm
- LTKIE1000/2500: 1,720 mm
- LTKIE1000/3000: 1,970 mm
4. What type of wheels does the stacker have?
The stacker is equipped with polyurethane wheels, with diameters of 200 mm for the front wheels and 80 mm for the rear wheels, ensuring smooth and durable operation.
5. What safety features are included with the stacker?
The stacker features a built-in charger, wheels fitted with brakes, and is designed to meet standard safety regulations for manual pallet handling equipment.
Usage and Operation
6. How is the stacker operated?
The stacker offers easy and fast lifting operations, with electric lifting and lowering functions, providing flexibility in operation.
7. Is the stacker suitable for handling euro pallets?
Yes, the stacker is designed to handle standard euro pallets and other closed-bottom pallets.
Maintenance and Care
8. What maintenance is required for the stacker?
Regular maintenance includes checking the hydraulic system for leaks, ensuring the battery is charged, and inspecting wheels for wear and tear.
Purchasing and Delivery
9. What is the price of the stacker?
The price varies depending on the model.
10. What is the delivery time for the stacker?
Delivery times are typically 2-3 business days, depending on your location.
11. Are there any optional accessories available?
Optional accessories may be available. For specific requirements, please contact Liftruck UK directly.
Safety and Regulations
12. Is the stacker compliant with safety standards?
Yes, the stacker is designed to meet all relevant safety standards for manual pallet handling equipment.
13. Are safety guidelines included with the stacker?
Yes, the stacker comes with safety guidelines to ensure safe operation within warehouse environments.
